INCLUDES 24v psu.

120W@4ohm x2-channel amplifier.

BT 5.0 amplifier with APTX-LL

Multiple input options.

BT

USB

optical

coaxial

RCA

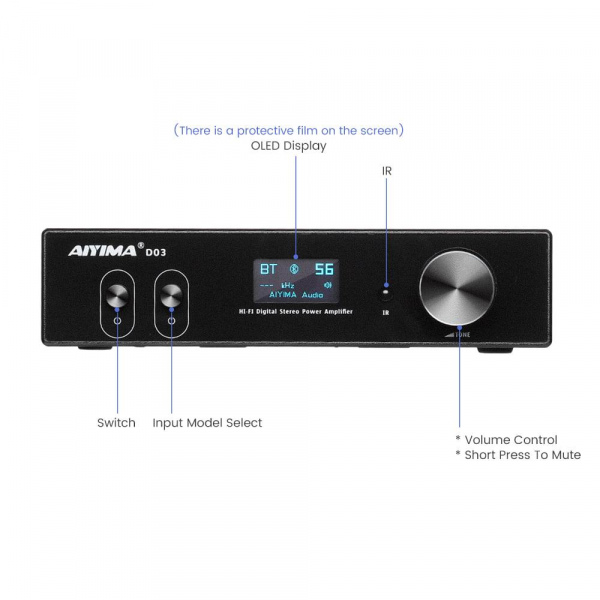

An IR remote control allows adjustment of the inputs mode/volume/bass/treble/mute/loudness setting.

Description

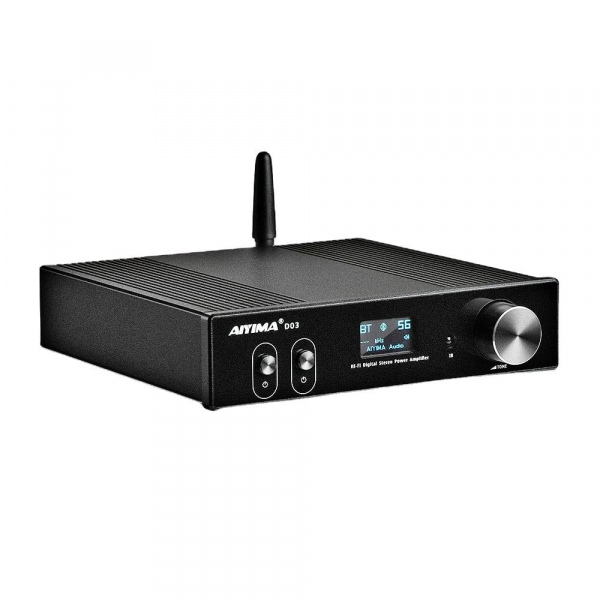

Model: AIYIMA D03

Color: Black

Chipset:CS8422+QCC3034+SA9123I+TAS5548+TAS5624+PCM1808+DRV603

BT chip: QCC3034 BT 5.0 support: ACC, SBC, aptX, aptX-LL, APTX-HD.

PC-USB/optical/coaxial sampling rate: 24bit/192khz

PC-USB operating system: Windows XP / Vista7/8/10 / Max OS/MAC/Linux/Mobile OTG

Signal to noise ratio: 93db

Tonal gain (treble and bass): ±14

Input sensitivity: 0.775V

Frequency response: 20-20Khz (±1.25db)

Subwoofer output level: 2.1V

Total harmonic distortion: 0.001% (1kHz 1w)

Speaker impedance: 4-8Ω

Output power: 150W*2 (4Ω load) 36V, 6%THD+N

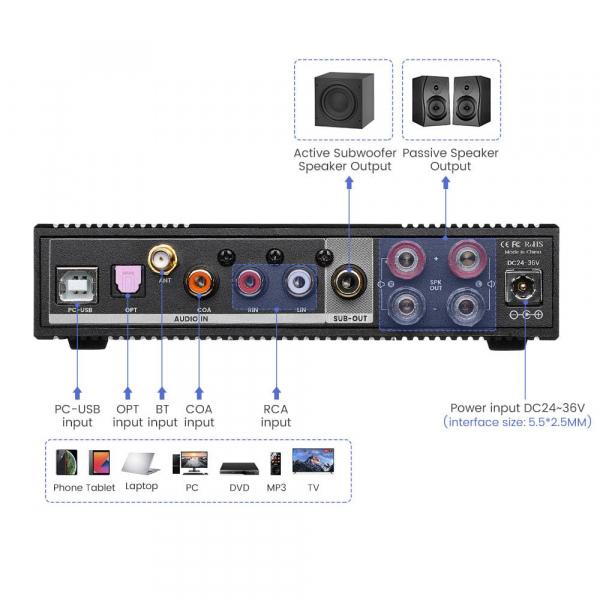

Input mode: RCA/BT/PC-usb/optical/coaxial

Support equipment: mobile phones, tablets, computers, MP3, TV, etc.

Output mode:

Passive speaker pair.

Active subwoofer.

Working power supply: DC24v-36V (24V iNCLUDED)

Size: 151*141*37mm

Product net weight: 670g

Package includes:

1*D03 amplifier

1*Remote control

1*BT antenna

1*USB Cable x1

1*Optical Cable x1
