Model: AIYIMA B01

Number of channels: 2.0 / 2.1 / 2.2

Supply voltage: DC12V-24V, (PSU not included, see aditional listings)

Audio input: BT

Stereo RCA

U-disk.

U-disk support format: MP3, WMA, APE, FLAC, WAV...

BT version: 5.0

Speaker impedance: 4-8Ω

Max output power: 50W*2+100W (4Ω load)

SNR: ≥98dB

Input sensitivity: 0.775V

THD: 0.05%(1kHz 1W)

Frequency Response: 20Hz-20KHz(±3dB)

Low frequency adjustment range: 40-300Hz

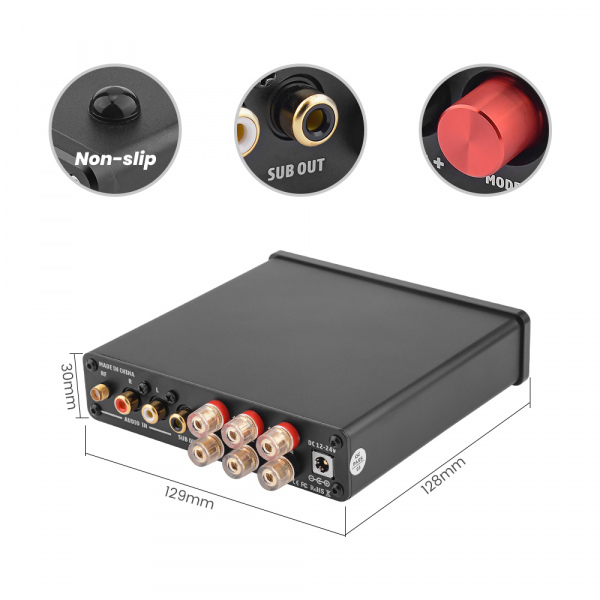

Dimensions(W*D*H): 129*128*30mm

Features:

1.The Aiyima B01 amplifier supports stereo RCA and BT 5.0 input, compatible with phones, tablets, computers, TVs, MP3 players, CD players etc. It is also a digital music player with U-disk input supporting MP3 and lossless formats such as WAV, APE, FLAC and WMA.

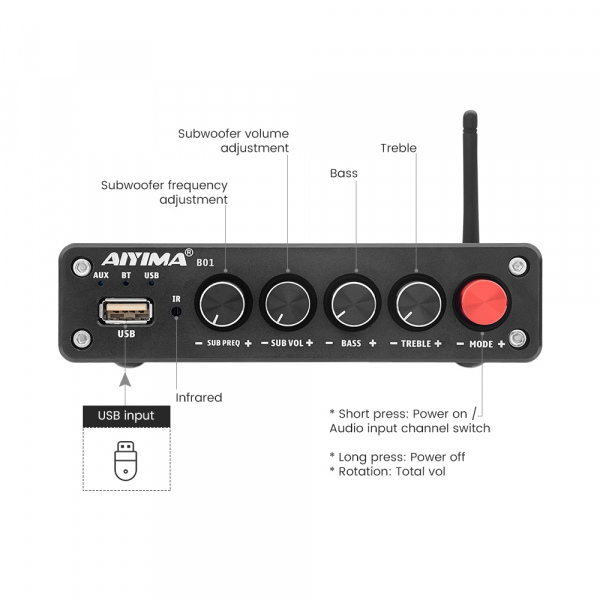

2.Reasonable circuit layout and concise wiring ensures clear and clean sound, with bass and treble adjustments to allow for finer tuning. Independent low frequency adjustment and bass volume control are added for the subwoofer channel.

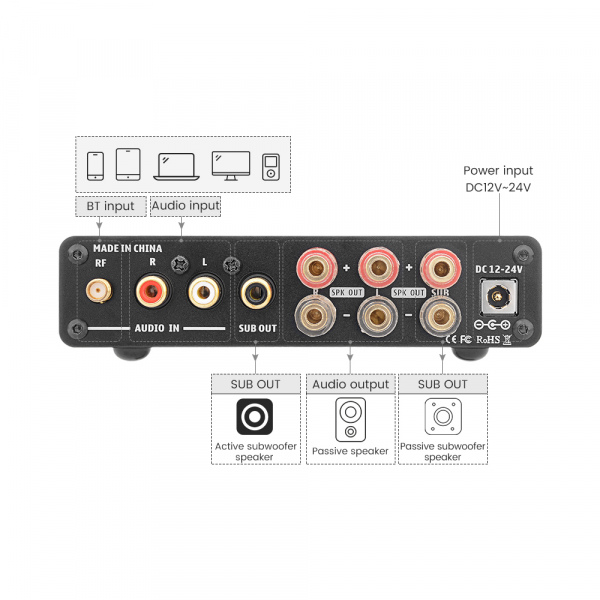

Separate structure makes it multi-functional, it can independently connect to a pair of stereo speakers and a subwoofer, and a low frequency output is specially added for the users who already have an active subwoofer, making it easy to build 2.0 channel / 2.1 channel / 2.2 channel audio system as you like.

3.Using a 2PCS amp chip, power output can reach 50W*2(left and right channel) +100W (subwoofer out), You will need a high-quality 24V/4.5A power supply.

4.Durable aluminum alloy case with input switch, and remote control.
